Enclosures. Cable Management Wire - AWG - Polyolefin Outer Jacket - 4 FT (1.2 Meter) Lengths - 600 - RED

SCL-0375-2

Enclosures. Cable Management Wire -  AWG - Polyolefin Outer Jacket - 4 FT (1.2 Meter) Lengths - 600 - RED

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

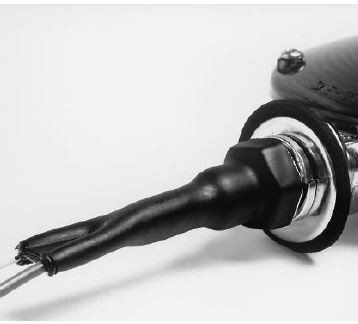

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.


OR

Quick Overview

SCL 3/8" Dual Wall Tubing Red
AMS-DTL-23053/4 Class 1, Formerly MIL-I-23053/4 and MIL-DTL-23053/4

Specifications

SKU SCL-0375-2
Manufacturer IWC Approved
Type Enclosures
Military Specification AMS-DTL-23053/4
Voltage, Max. Operating 600
Shrink Temperature 257°F / 125°C
Continuous Use Temp -67° to 230°F / -55° to 110°C
Weight 0.0000
Insulation Material Polyolefin
Amount 4 FT (1.2 Meter) Lengths
Min. Expanded ID (mm) 9.5
Recovered Wall Thickness (mm) 1.27 ± 0.18
Min. Expanded ID (in) .375
Recovered Wall Thickness (in) .050 ± .007
Max Recovered ID (in) .135
Max Recovered ID (mm) 3.4
Fractional Size 3/8
