Belden FS15BNC - AWG - C -

FS15BNC

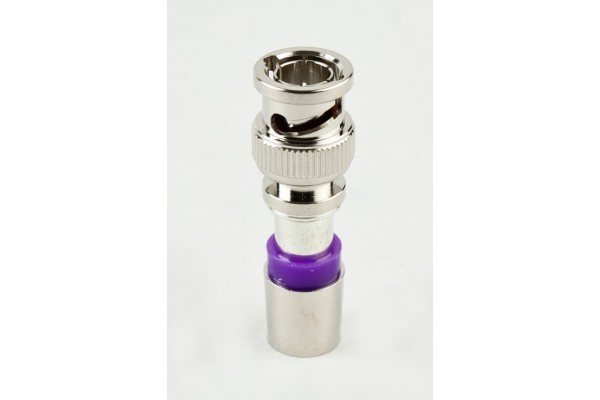

Belden FS15BNC -  AWG -  C -

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.


OR

Quick Overview

RGB 22-24 AWG, BNC, 1-Piece Solid Center Conductor
BNC, 1 Piece Solid Center Cond., RGB 22-24 AWG (Purple)
RGB/ Mini Coax Compression Connectors are used in commercial, professional A/V and security industries. They are available in two sizes: RG15 (22-24 AWG) and RG1 (25-26 AWG), in F, RCA & BNC connector types. Multi-piece RGB connectors are for solid center wire or stranded cable. One-piece RGB connectors are for solid center conductor wire only, allowing installers to save time while retaining quality. RGB F pin-type connector is for RG 15. Stringent testing standards demonstrate superior return loss numbers on all our RGB/ mini coax connectors.

Specifications

SKU FS15BNC
Manufacturer Belden
Mfr. Part No FS15BNC
Type Connectivity
Weight 0.0000
Connector Type BNC, 1-Piece Solid Center Conductor
Connector Size (Cable Type) RGB 22-24 AWG
Connector Finish Nickel
Color Band Purple
Required Tool CLCCT-SLM
Required Adapter Tip NONE
