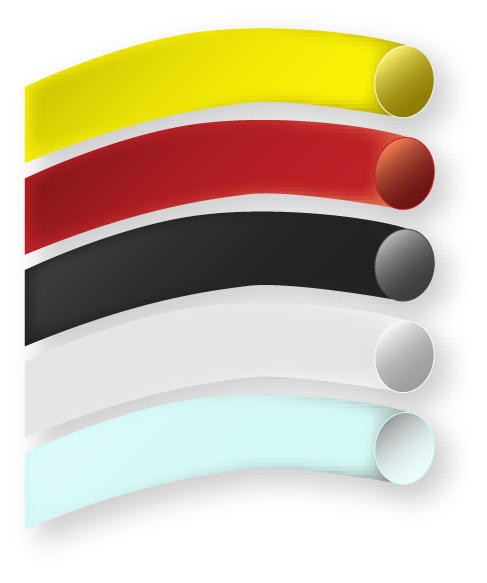

How to Shrink: Generally the FEP 1.3:1 Heat Shrinkable Tubing grows in length upon shrinking. Allow the FEP shrink to slide forward to prevent wrinkling. FEP 1.3:1 Heat Shrink works well as a protective sleeving and can be used to thoroughly encapsulate parts if needed.
Specifications
| SKU | FEP-1330 |
|---|---|
| Manufacturer | IWC Approved |
| Type | Enclosures |
| Military Specification | AMS-DTL-23053/11 Class 1 |
| Shrink Temperature | 430°F / 221°C |
| Continuous Use Temp | -100° to 400°F / -75° to 200°C |
| Weight | 0.1439 |
| Insulation Material | FEP - Fluorinated Ethylene Propylene |
| Amount | 4 ft and coils |
| Color | Translucent |
| Min. Expanded ID (mm) | 33.8 |
| Recovered Wall Thickness (mm) | .889 ± .102 |
| Min. Expanded ID (in) | 1.33 |
| Recovered Wall Thickness (in) | .035 ± .004 |
| Max Recovered ID (in) | 1.02 |
| Max Recovered ID (mm) | 25.9 |
| Fractional Size | 1 |
