GenSPEED® 6 Category 6 Cable

GenSPEED® 6 Category 6 Cable

CMP-230104-L6-3

Double click on above image to view full picture

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Qty:

| Add to Compare

RoHS Compliant

Quick Overview

23 AWG Solid Bare Copper, Fluoropolymer/Dual-Layer Polyolefin, Rip Cord, Low-Smoke, Flame-Retardant PVC, 1000 FT Pull-Pac® Orange

Details
Download Datasheet

#23 4PR 350MHz CMP (Plenum) 1000 FT Pull-Pac® 23 AWG Solid Bare Copper,Fluoropolymer/Dual-Layer Polyolefin, Rip Cord, Low-Smoke, Flame-Retardant PVC, Orange

Specifications

Temp Range, Operating	-20ºC To +75ºC
Impedance	100 +/- 15
Velocity of Propagation (%)	70
SKU	CMP-230104-L6-3
Manufacturer	General Cable
CEC/C(UL) Specification	CMP
RoHS	Yes
EU CE Mark	Yes
NEC/(UL) Specification	CMP
Mfr. Part No	7131805
Plenum	Yes
Weight	28.0000
Color	ORANGE
Type	Paired
Conductor Size (AWG)	23
Conductor Material	BC - Bare Copper
Number of Pairs	4
Conductor Stranding	Solid
Insulation Material	Fluoropolymer/Dual-Layer Polyolefin
Overall Nominal Diameter	0.2
Outer Jacket Material	Low-Smoke, Flame-Retardant PVC
Outer Shield Material	Unshielded
Amount	1000 FT Pull-Pac® II

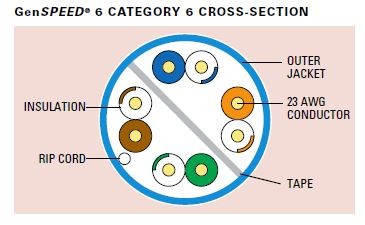

GenSPEED® 6 Category 6 Cable (CMP-230104-L6-3) Datasheet

#23 4PR 350MHz CMP (Plenum) 1000 FT Pull-Pac®
23 AWG Solid Bare Copper,Fluoropolymer/Dual-Layer Polyolefin, Rip Cord, Low-Smoke, Flame-Retardant PVC, Orange    <h2>Specifications</h2>
