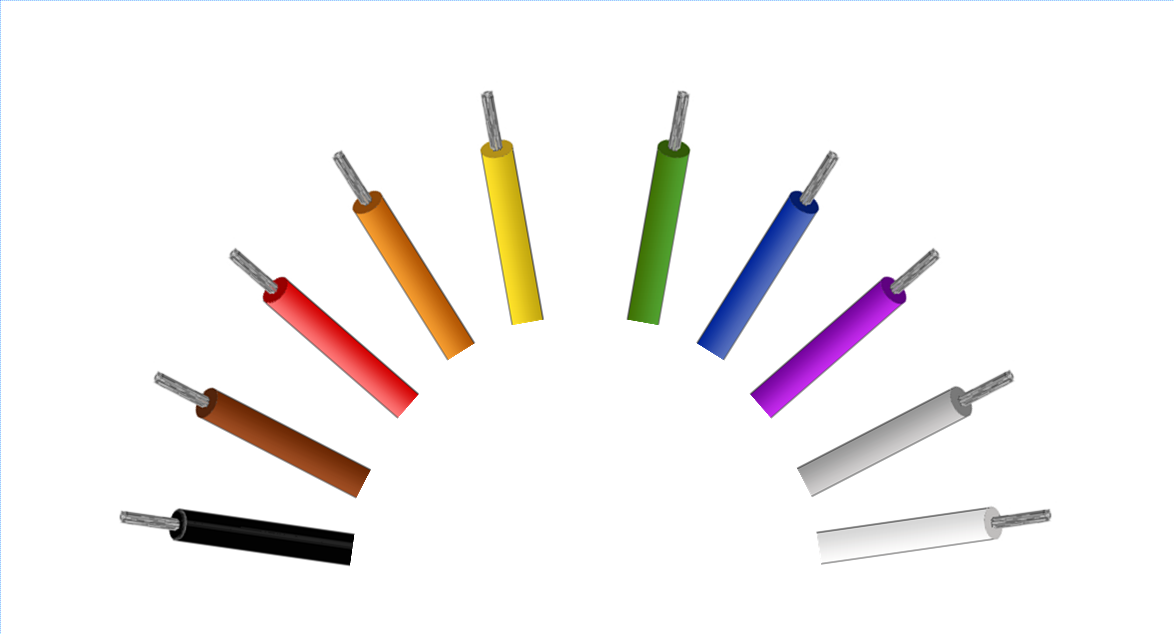

MIL-W-16878/4 (Type E) PTFE hook up wire is suitable for high temperature applications. The medium wall PTFE insulation offers high reliablility and excellent thermal stability. It resists chemicals, ultra-violet radiation, and mold growth and is non-toxic and safe for the environment. The PTFE insulation has a great flex-life and is suitable for a wide frequency range. Compared with other insulations, PTFE saves space and weight and is easy to install. Common applications include military harnessing, power supply lead wire, appliance wiring and medical electronics.
Specifications
| SKU | WES-1219 |
|---|---|
| Manufacturer | IWC Approved |
| Voltage, Max. Operating | 600 V RMS |
| Temp Rating, Non-UL | 200ºC |
| Type | Hook-up/Lead |
| Conductor Size (AWG) | 12 |
| Conductor Material | SPC - Silver Plated Copper |
| Conductor Stranding | 19x25 |
| Insulation Material | PTFE - Polytetrafluoroethylene |
| Insulation Wall Thickness | .010 |
| Insulation Wall Thickness (Metric) | 0.254 |
| Overall Nominal Diameter | .113 |
| Amount | 1 ft |
| RoHS | Yes |
| EU CE Mark | Yes |
| Military Specification | MIL-W-16878/4 |
| NEMA | HP3 |
| Flame Test - UL Flame Test | VW-1 |
