Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket

WES-1419

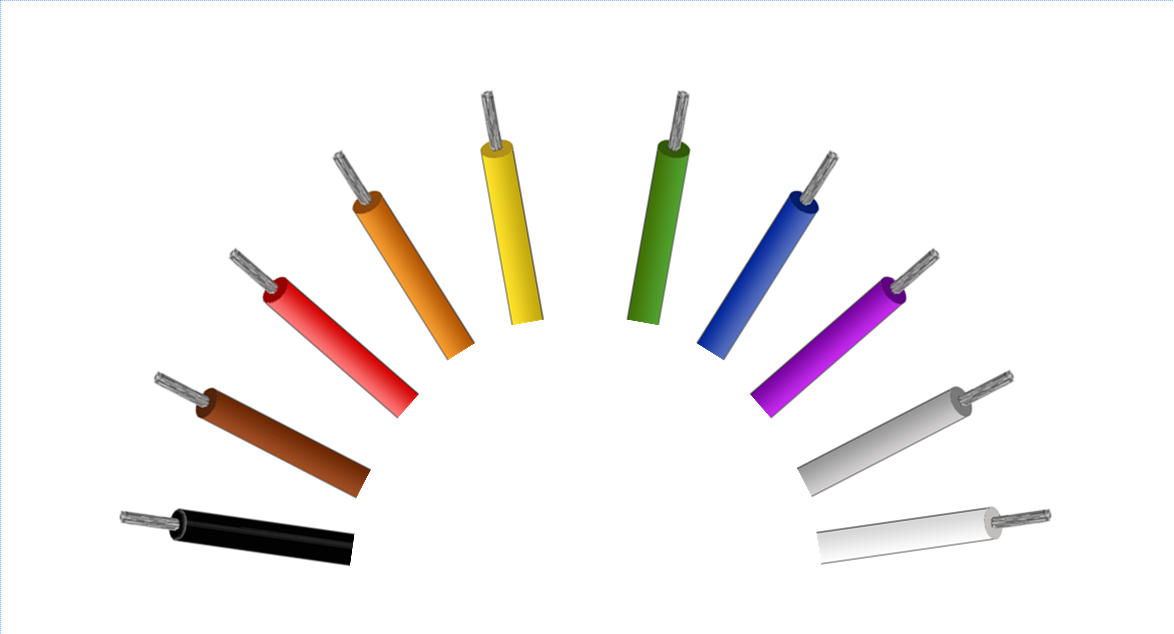

Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

WES-1419-9

SKU: WES-1419-9
Manufacturer: IWC Approved
Voltage, Max. Operating: 600 V RMS
Temperature Rating, Non-UL: 200ºC
Cable Type: Hook-up/Lead
Weight: 15.5000
Color: WHITE
Conductor Size (AWG): 14
Conductor Material: SPC - Silver Plated Copper
Conductor Stranding: 19x27
Insulation Material: PTFE - Polytetrafluoroethylene
Insulation Wall Thickness: .010
Insulation Wall Thickness (Metric): 0.254
Overall Nominal Diameter: .094
Amount: 1 ft
RoHS: Yes
EU CE Mark: Yes
Military Specification: MIL-W-16878/4
NEMA: HP3
Flame Test - UL Flame Test: VW-1
Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket - WHITE (WES-1419-9) DatasheetAdd to Compare

WES-1419-8

SKU: WES-1419-8
Manufacturer: IWC Approved
Voltage, Max. Operating: 600 V RMS
Temperature Rating, Non-UL: 200ºC
Cable Type: Hook-up/Lead
Weight: 15.5000
Color: GRAY
Conductor Size (AWG): 14
Conductor Material: SPC - Silver Plated Copper
Conductor Stranding: 19x27
Insulation Material: PTFE - Polytetrafluoroethylene
Insulation Wall Thickness: .010
Insulation Wall Thickness (Metric): 0.254
Overall Nominal Diameter: .094
Amount: 1 ft
RoHS: Yes
EU CE Mark: Yes
Military Specification: MIL-W-16878/4
NEMA: HP3
Flame Test - UL Flame Test: VW-1
Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket - GRAY (WES-1419-8) DatasheetAdd to Compare

WES-1419-7

SKU: WES-1419-7
Manufacturer: IWC Approved
Voltage, Max. Operating: 600 V RMS
Temperature Rating, Non-UL: 200ºC
Cable Type: Hook-up/Lead
Weight: 15.5000
Color: VIOLET
Conductor Size (AWG): 14
Conductor Material: SPC - Silver Plated Copper
Conductor Stranding: 19x27
Insulation Material: PTFE - Polytetrafluoroethylene
Insulation Wall Thickness: .010
Insulation Wall Thickness (Metric): 0.254
Overall Nominal Diameter: .094
Amount: 1 ft
RoHS: Yes
EU CE Mark: Yes
Military Specification: MIL-W-16878/4
NEMA: HP3
Flame Test - UL Flame Test: VW-1
Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket - VIOLET (WES-1419-7) DatasheetAdd to Compare

WES-1419-6

SKU: WES-1419-6
Manufacturer: IWC Approved
Voltage, Max. Operating: 600 V RMS
Temperature Rating, Non-UL: 200ºC
Cable Type: Hook-up/Lead
Weight: 15.5000
Color: BLUE
Conductor Size (AWG): 14
Conductor Material: SPC - Silver Plated Copper
Conductor Stranding: 19x27
Insulation Material: PTFE - Polytetrafluoroethylene
Insulation Wall Thickness: .010
Insulation Wall Thickness (Metric): 0.254
Overall Nominal Diameter: .094
Amount: 1 ft
RoHS: Yes
EU CE Mark: Yes
Military Specification: MIL-W-16878/4
NEMA: HP3
Flame Test - UL Flame Test: VW-1
Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket - BLUE (WES-1419-6) DatasheetAdd to Compare

WES-1419-5

SKU: WES-1419-5
Manufacturer: IWC Approved
Voltage, Max. Operating: 600 V RMS
Temperature Rating, Non-UL: 200ºC
Cable Type: Hook-up/Lead
Weight: 15.5000
Color: GREEN
Conductor Size (AWG): 14
Conductor Material: SPC - Silver Plated Copper
Conductor Stranding: 19x27
Insulation Material: PTFE - Polytetrafluoroethylene
Insulation Wall Thickness: .010
Insulation Wall Thickness (Metric): 0.254
Overall Nominal Diameter: .094
Amount: 1 ft
RoHS: Yes
EU CE Mark: Yes
Military Specification: MIL-W-16878/4
NEMA: HP3
Flame Test - UL Flame Test: VW-1
Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket - GREEN (WES-1419-5) DatasheetAdd to Compare

WES-1419-4

SKU: WES-1419-4
Manufacturer: IWC Approved
Voltage, Max. Operating: 600 V RMS
Temperature Rating, Non-UL: 200ºC
Cable Type: Hook-up/Lead
Weight: 15.5000
Color: YELLOW
Conductor Size (AWG): 14
Conductor Material: SPC - Silver Plated Copper
Conductor Stranding: 19x27
Insulation Material: PTFE - Polytetrafluoroethylene
Insulation Wall Thickness: .010
Insulation Wall Thickness (Metric): 0.254
Overall Nominal Diameter: .094
Amount: 1 ft
RoHS: Yes
EU CE Mark: Yes
Military Specification: MIL-W-16878/4
NEMA: HP3
Flame Test - UL Flame Test: VW-1
Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket - YELLOW (WES-1419-4) DatasheetAdd to Compare

WES-1419-3

SKU: WES-1419-3
Manufacturer: IWC Approved
Voltage, Max. Operating: 600 V RMS
Temperature Rating, Non-UL: 200ºC
Cable Type: Hook-up/Lead
Weight: 15.5000
Color: ORANGE
Conductor Size (AWG): 14
Conductor Material: SPC - Silver Plated Copper
Conductor Stranding: 19x27
Insulation Material: PTFE - Polytetrafluoroethylene
Insulation Wall Thickness: .010
Insulation Wall Thickness (Metric): 0.254
Overall Nominal Diameter: .094
Amount: 1 ft
RoHS: Yes
EU CE Mark: Yes
Military Specification: MIL-W-16878/4
NEMA: HP3
Flame Test - UL Flame Test: VW-1
Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket - ORANGE (WES-1419-3) DatasheetAdd to Compare

WES-1419-2

SKU: WES-1419-2
Manufacturer: IWC Approved
Voltage, Max. Operating: 600 V RMS
Temperature Rating, Non-UL: 200ºC
Cable Type: Hook-up/Lead
Weight: 15.5000
Color: RED
Conductor Size (AWG): 14
Conductor Material: SPC - Silver Plated Copper
Conductor Stranding: 19x27
Insulation Material: PTFE - Polytetrafluoroethylene
Insulation Wall Thickness: .010
Insulation Wall Thickness (Metric): 0.254
Overall Nominal Diameter: .094
Amount: 1 ft
RoHS: Yes
EU CE Mark: Yes
Military Specification: MIL-W-16878/4
NEMA: HP3
Flame Test - UL Flame Test: VW-1
Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket - RED (WES-1419-2) DatasheetAdd to Compare

WES-1419-1

SKU: WES-1419-1
Manufacturer: IWC Approved
Voltage, Max. Operating: 600 V RMS
Temperature Rating, Non-UL: 200ºC
Cable Type: Hook-up/Lead
Weight: 15.5000
Color: BROWN
Conductor Size (AWG): 14
Conductor Material: SPC - Silver Plated Copper
Conductor Stranding: 19x27
Insulation Material: PTFE - Polytetrafluoroethylene
Insulation Wall Thickness: .010
Insulation Wall Thickness (Metric): 0.254
Overall Nominal Diameter: .094
Amount: 1 ft
RoHS: Yes
EU CE Mark: Yes
Military Specification: MIL-W-16878/4
NEMA: HP3
Flame Test - UL Flame Test: VW-1
Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket - BROWN (WES-1419-1) DatasheetAdd to Compare

WES-1419-0

SKU: WES-1419-0
Manufacturer: IWC Approved
Voltage, Max. Operating: 600 V RMS
Temperature Rating, Non-UL: 200ºC
Cable Type: Hook-up/Lead
Weight: 15.5000
Color: BLACK
Conductor Size (AWG): 14
Conductor Material: SPC - Silver Plated Copper
Conductor Stranding: 19x27
Insulation Material: PTFE - Polytetrafluoroethylene
Insulation Wall Thickness: .010
Insulation Wall Thickness (Metric): 0.254
Overall Nominal Diameter: .094
Amount: 1 ft
RoHS: Yes
EU CE Mark: Yes
Military Specification: MIL-W-16878/4
NEMA: HP3
Flame Test - UL Flame Test: VW-1
Mil-Spec Hook-up/Lead Wire - 14 AWG - PTFE - Polytetrafluoroethylene Outer Jacket - BLACK (WES-1419-0) DatasheetAdd to Compare

* Required Fields

$0.0000

RoHS Compliant

Quick Overview

14 STR PTFE
SKUColor
WES-1419-0BLACK
WES-1419-1BROWN
WES-1419-2RED
WES-1419-3ORANGE
WES-1419-4YELLOW
WES-1419-5GREEN
WES-1419-6BLUE
WES-1419-7VIOLET
WES-1419-8GRAY
WES-1419-9WHITE
MIL-W-16878/4 (Type E) PTFE hook up wire is suitable for high temperature applications. The medium wall PTFE insulation offers high reliablility and excellent thermal stability. It resists chemicals, ultra-violet radiation, and mold growth and is non-toxic and safe for the environment. The PTFE insulation has a great flex-life and is suitable for a wide frequency range. Compared with other insulations, PTFE saves space and weight and is easy to install. Common applications include military harnessing, power supply lead wire, appliance wiring and medical electronics.

Specifications

SKU WES-1419
Manufacturer IWC Approved
Voltage, Max. Operating 600 V RMS
Temp Rating, Non-UL 200ºC
Type Hook-up/Lead
Conductor Size (AWG) 14
Conductor Material SPC - Silver Plated Copper
Conductor Stranding 19x27
Insulation Material PTFE - Polytetrafluoroethylene
Insulation Wall Thickness .010
Insulation Wall Thickness (Metric) 0.254
Overall Nominal Diameter .094
Amount 1 ft
RoHS Yes
EU CE Mark Yes
Military Specification MIL-W-16878/4
NEMA HP3
Flame Test - UL Flame Test VW-1
