Non-Paired Wire - 24 AWG - S-R PVC - Semi-Rigid Polyvinyl Chloride Outer Jacket - 1 FT - 300 V RMS (UL AWM Style 2464) - GRAY

CVU-240715(GC)

Non-Paired Wire - 24 AWG - S-R PVC - Semi-Rigid Polyvinyl Chloride Outer Jacket - 1 FT - 300 V RMS (UL AWM Style 2464) - GRAY

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

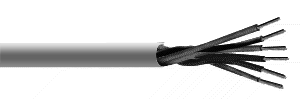

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.


OR
RoHS Compliant

Quick Overview

15 #24 S-R PVC UNSHLD PVC
RS-232 Computer Interconnect, Control and Sound Cable

Specifications

Temp Range, Operating -20ºC To +80ºC
Temp Rating, UL 80ºC (UL AWM Style 2464)
Capacitance 23.0
Voltage, Max. Operating 300 V RMS (UL AWM Style 2464)
SKU CVU-240715(GC)
Manufacturer IWC Approved
AWM Specification UL Style 2464 (300 V 80ºC)
CEC/C(UL) Specification CM
RoHS Yes
EU CE Mark Yes
NEC/(UL) Specification CM
Weight 0.0000
Color GRAY
Type Non-Paired
Conductor Size (AWG) 24
Conductor Material TC - Tinned Copper
Number of Conductors 15
Conductor Stranding 7x32
Insulation Material S-R PVC - Semi-Rigid Polyvinyl Chloride
Insulation Wall Thickness .010
Insulation Wall Thickness (Metric) 0.25
Overall Nominal Diameter 0.275
Outer Jacket Wall Thickness .032
Outer Jacket Material PVC - Polyvinyl Chloride
Amount 1 ft
Overall Cabling - Overall Nominal Diameter (Metric) 6.99
Outer Jacket - Nom. Wall Thickness (Metric) 0.81
