Multi-Conductor Flexible Power and Control Cable

OL-00101063

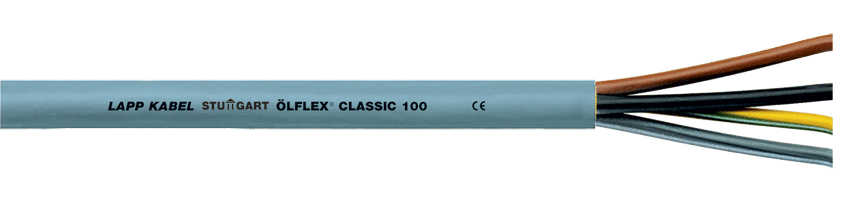

Multi-Conductor Flexible Power and Control Cable

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.


OR
RoHS Compliant

Quick Overview

4 #10 PVC UNSHLD PVC OLFLEX® Classic 100
4 conductor. 10 AWG (84x28) 6 mm² bare copper. PVC insulation. Dry lubricant, Conductors cabled with non-wicking fillers. Gray PVC jacket.

Specifications

Temp Range, Operating -40ºC To +70ºC
Voltage, Max. Operating 450/750 V
SKU OL-00101063
Manufacturer Olflex/Lapp
RoHS Yes
EU CE Mark Yes
Mfr. Part No 00101063 (10106)
Weight 265.0000
Color GRAY
Type Non-Paired
Conductor Size (AWG) 10
Conductor Material BC - Bare Copper
Number of Conductors 4
Conductor Stranding 84x28
Insulation Material PVC - Polyvinyl Chloride
Overall Nominal Diameter .543
Outer Jacket Material PVC - Polyvinyl Chloride
Amount 1 ft
Overall Cabling - Overall Nominal Diameter (Metric) 13.8
