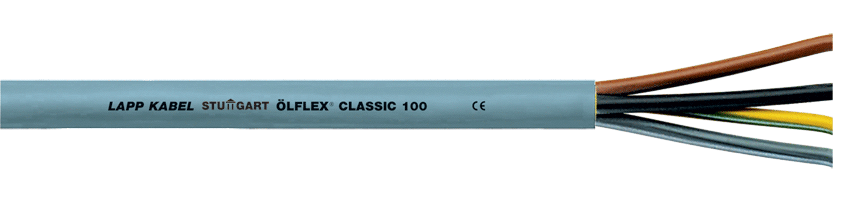

4 conductor. 300 KCMIL AWG (765x24) 150 mm² bare copper. PVC insulation. Dry lubricant, Conductors cabled with non-wicking fillers. Gray PVC jacket.
Specifications
Temp Range, Operating | -40ºC To +70ºC |
---|---|
Voltage, Max. Operating | 450/750 V |
SKU | OL-00103113 |
Manufacturer | Olflex/Lapp |
RoHS | Yes |
EU CE Mark | Yes |
Mfr. Part No | 00103113 (0010311) |
Weight | 4570.0000 |
Color | GRAY |
Type | Non-Paired |
Conductor Size (AWG) | 300 KCMIL |
Conductor Material | BC - Bare Copper |
Number of Conductors | 4 |
Conductor Stranding | 765x24 |
Insulation Material | PVC - Polyvinyl Chloride |
Overall Nominal Diameter | 2.319 |
Outer Jacket Material | PVC - Polyvinyl Chloride |
Amount | 1 ft |
Overall Cabling - Overall Nominal Diameter (Metric) | 58.9 |
