Multi-Conductor Flexible Power and Control Cable

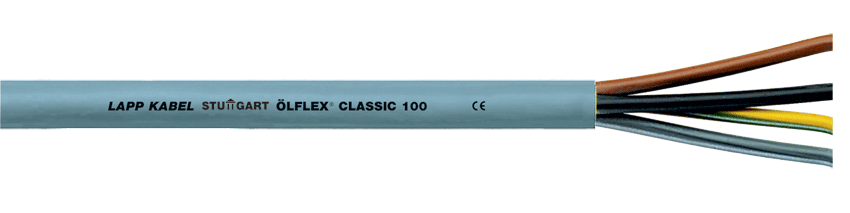

Multi-Conductor Flexible Power and Control Cable

OL-10063

Double click on above image to view full picture

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Qty:

| Add to Compare

RoHS Compliant

Quick Overview

2 #16 PVC UNSHLD PVC OLFLEX® Classic 100

Details
Download Datasheet

2 conductor. 16 AWG (30x30) 1.50mm² bare copper. PVC insulation. Dry lubricant, Conductors cabled with non-wicking fillers. Gray PVC jacket.

Specifications

Temp Range, Operating	-40ºC To +70ºC
Voltage, Max. Operating	450/750 V
SKU	OL-10063
Manufacturer	Olflex/Lapp
RoHS	Yes
EU CE Mark	Yes
Mfr. Part No	10063
Weight	58.0000
Color	GRAY
Type	Non-Paired
Conductor Size (AWG)	16
Conductor Material	BC - Bare Copper
Number of Conductors	2
Conductor Stranding	30x30
Insulation Material	PVC - Polyvinyl Chloride
Overall Nominal Diameter	0.295
Outer Jacket Material	PVC - Polyvinyl Chloride
Amount	1 ft
Overall Cabling - Overall Nominal Diameter (Metric)	7.5
