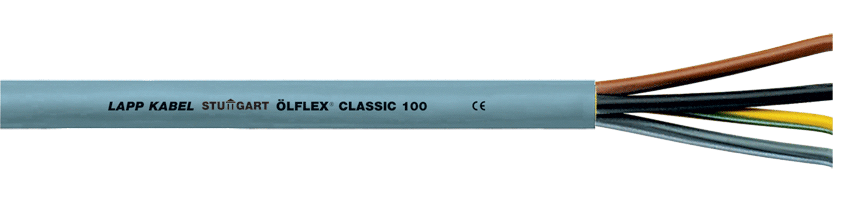

3 conductor. 8 AWG (80x26) 10 mm² bare copper. PVC insulation. Dry lubricant, Conductors cabled with non-wicking fillers. Gray PVC jacket.
Specifications
Temp Range, Operating | -40ºC To +70ºC |
---|---|
Voltage, Max. Operating | 450/750 V |
SKU | OL-10301 |
Manufacturer | Olflex/Lapp |
RoHS | Yes |
EU CE Mark | Yes |
Mfr. Part No | 10301 |
Weight | 342.0000 |
Color | GRAY |
Type | Non-Paired |
Conductor Size (AWG) | 8 |
Conductor Material | BC - Bare Copper |
Number of Conductors | 3 |
Conductor Stranding | 80x26 |
Insulation Material | PVC - Polyvinyl Chloride |
Overall Nominal Diameter | .626 |
Outer Jacket Material | PVC - Polyvinyl Chloride |
Amount | 1 ft |
Overall Cabling - Overall Nominal Diameter (Metric) | 15.9 |
