Non-Paired Wire - 20 AWG - Plenum Grade PVC - Polyvinyl Chloride Outer Jacket - 1 FT - 300 V RMS - WHITE

CPF-200704-C

Non-Paired Wire - 20 AWG - Plenum Grade PVC - Polyvinyl Chloride Outer Jacket - 1 FT - 300 V RMS - WHITE

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

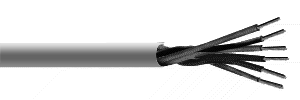

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.


OR
RoHS Compliant

Quick Overview

4 Conductor #20 Stranded Bare Copper Plenum PVC Plenum PVC
Plenum sound and security cable may be used in intercom/PA systems and sound/audio systems.

Specifications

Temp Range, Operating -10ºC To +75ºC
Voltage, Max. Operating 300 V RMS
SKU CPF-200704-C
Manufacturer IWC Approved
CEC/C(UL) Specification CMP
RoHS Yes
NEC/(UL) Specification FPLP
Plenum Yes
Flame Test - UL Flame Test NFPA 262 (UL 910)
Weight 0.0000
Color WHITE
Type Non-Paired
Conductor Size (AWG) 20
Conductor Material BC - Bare Copper
Number of Conductors 4
Conductor Stranding 7x28
Insulation Material Plenum Grade PVC - Polyvinyl Chloride
Insulation Wall Thickness .006
Overall Nominal Diameter 0.15
Outer Jacket Wall Thickness .014
Outer Jacket Material Plenum Grade PVC - Polyvinyl Chloride
Amount 1 ft
