Enclosures. Cable Management Wire - AWG - PTFE (Standard Wall) - Polytetrafluoroethylene Outer Jacket - 4 ft and coils

HS2TFS22

Enclosures. Cable Management Wire -  AWG - PTFE (Standard Wall) - Polytetrafluoroethylene Outer Jacket - 4 ft and coils

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

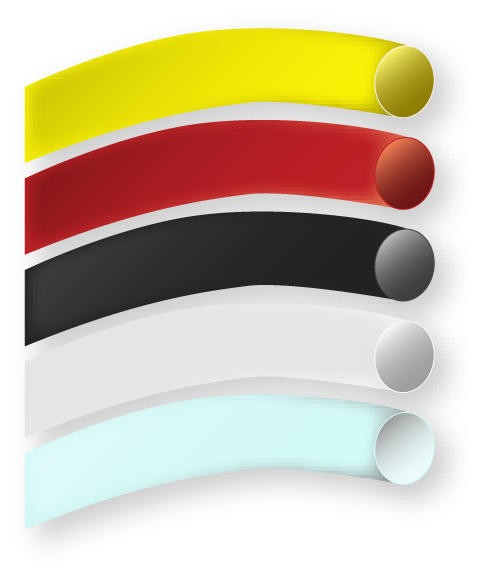

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.


OR

Quick Overview

22 AWG PTFE 2:1 Heat Shrink Tubing
22 AWG PTFE 2:1 Standard Wall Heat Shrink Tubing

Specifications

SKU HS2TFS22
Manufacturer IWC Approved
Type Enclosures
Military Specification AMS-DTL-23053/12
Shrink Temperature 662°F / 350°C
Continuous Use Temp -100° to 500°F / -75° to 260°C
Weight 0.0000
Insulation Material PTFE (Standard Wall) - Polytetrafluoroethylene
Amount 4 ft and coils
Color Natural - Translucent to Opaque White
Min. Expanded ID (in) .055
Recovered Wall Thickness (in) .012 ± .002
Max Recovered ID (in) .032
AWG Size 22
