Quick Overview

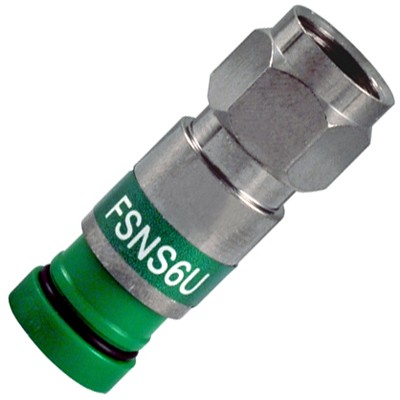

RG6 Universal "F" Connector for Standard or Quad-Shield Cable
75 ohms
The ProSNS™ F type connectors use a patented, removable plastic sleeve guide designed to assist with the insertion of the cable center conductor to simplify the installation. As the cable center conductor is inserted into the back end of the connector, the removable plastic guide is pushed forward and out from the front end of the connector. When the guide is completely pushed out from the front of the connector, it will detach and fall out. This design feature is to guide the insertion of the cable, and to help identify when the cable center conductor is fully and properly inserted into the connector. A patented internal O-ring at the base of the nut facilitates a free-spinning nut design to ease installation.

Specifications

SKU FSNS6U
Manufacturer Belden
Mfr. Part No FSNS6U
Type Connectivity
Weight 0.0000
Connector Type Universal F for Standard or Quad Shield Cable
Connector Size (Cable Type) RG-6
Color Band Green
Required Tool CLCCT-SLM
