Sumitube® A2 Polyolefin Heat Shrinkable Tubing 2:1

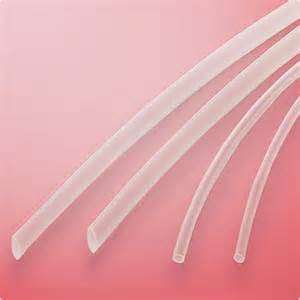

Sumitube® A2 Polyolefin Heat Shrinkable Tubing 2:1

HSA2-0063-SP-CL

Double click on above image to view full picture

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Qty:

| Add to Compare

Quick Overview

1/16" Polyolefin Tubing, Shrink Temperature 110°C, Spooled, CLEAR

Details
Download Datasheet

Specifications

SKU	HSA2-0063-SP-CL
Manufacturer	Sumitomo
Mfr. Part No	A2-1/16-Clear-S
Type	Enclosures
Military Specification	AMS-DTL-23053/5 Class 2
Shrink Temperature	110°C
Continuous Use Temp	-55° to 135°C
Weight	0.0000
Insulation Material	PO - Polyolefin
Size	1/16
Min. Expanded ID (in)	.063
Recovered Wall Thickness (in)	.017
Max Recovered ID (in)	.031
Color	CLEAR

Sumitube® A2 Polyolefin Heat Shrinkable Tubing 2:1 (HSA2-0063-SP-CL) Datasheet

Sumitube® A2 Heat Shrinkable Tubing is recommended for general purpose applications such as electrical insulation or light weight harness jacketing, where visual inspection of the substrate is desirable.    <h2>Specifications</h2>
