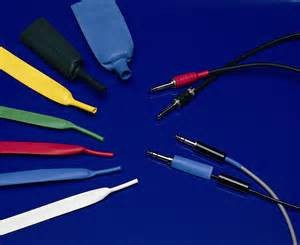

Sumitube® B2 Polyolefin Heat Shrinkable Tubing 2:1

HSB2-0375-4-8

Sumitube® B2 Polyolefin Heat Shrinkable Tubing 2:1

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.


OR

Quick Overview

3/8" Polyolefin Tubing, Shrink Temperature 90°C, 4 Foot Lengths, GRAY
Sumitube® B2 Heat Shrinkable Tubing is recommended for use in general purpose applications such as wire marking, color coding, and electrical insulation of light wire harness assemblies.

Specifications

SKU HSB2-0375-4-8
Manufacturer Sumitomo
Mfr. Part No B2-3/8-Gray-4'
Type Enclosures
Military Specification AMS-DTL-23053/5 Class 1 and 3
Shrink Temperature 110°C
Continuous Use Temp -55° to 135°C
Weight 0.0000
Insulation Material PO - Polyolefin
Size 3/8
Min. Expanded ID (in) .375
Recovered Wall Thickness (in) .025
Max Recovered ID (in) .187
Color GRAY
Sumitube® B2 Polyolefin Heat Shrinkable Tubing 2:1 (HSB2-0375-4-8) Datasheet
