Non-Paired Wire - 20 AWG - PVC - Polyvinyl Chloride Outer Jacket - 1 FT - 150 V RMS - BROWN

CVT-200109

Non-Paired Wire - 20 AWG - PVC - Polyvinyl Chloride Outer Jacket - 1 FT - 150 V RMS - BROWN

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

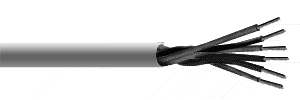

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.


OR
RoHS Compliant

Quick Overview

9 #20 PVC UNSHLD PVC
Custom Printing Available. We can custom print your Company Name and Phone Number on orders of 25,000 ft and more per line. This adds a custom look to your product and drives repeat customers back to your company. Thermostat cable may be used for many applications including: thermostat control, burglar alarms, intercom systems, bell systems, signal systems, heating & air conditioning installations, touch-plate systems, door bells, remote control units and low voltage installations.

Specifications

Temp Range, Operating -20ºC To +105ºC
Temp Rating, UL 105ºC
Voltage, Max. Operating 150 V RMS
SKU CVT-200109
Manufacturer IWC Approved
CEC/C(UL) Specification CMG
RoHS Yes
EU CE Mark Yes
NEC/(UL) Specification CL2
Weight 40.0000
Color BROWN
Type Non-Paired
Conductor Size (AWG) 20
Conductor Material BC - Bare Copper
Number of Conductors 9
Conductor Stranding Solid
Insulation Material PVC - Polyvinyl Chloride
Insulation Wall Thickness .008
Insulation Wall Thickness (Metric) .203
Overall Nominal Diameter 0.21
Outer Jacket Material PVC - Polyvinyl Chloride
Amount 1 ft
Overall Cabling - Overall Nominal Diameter (Metric) 5.33
