Quick Overview

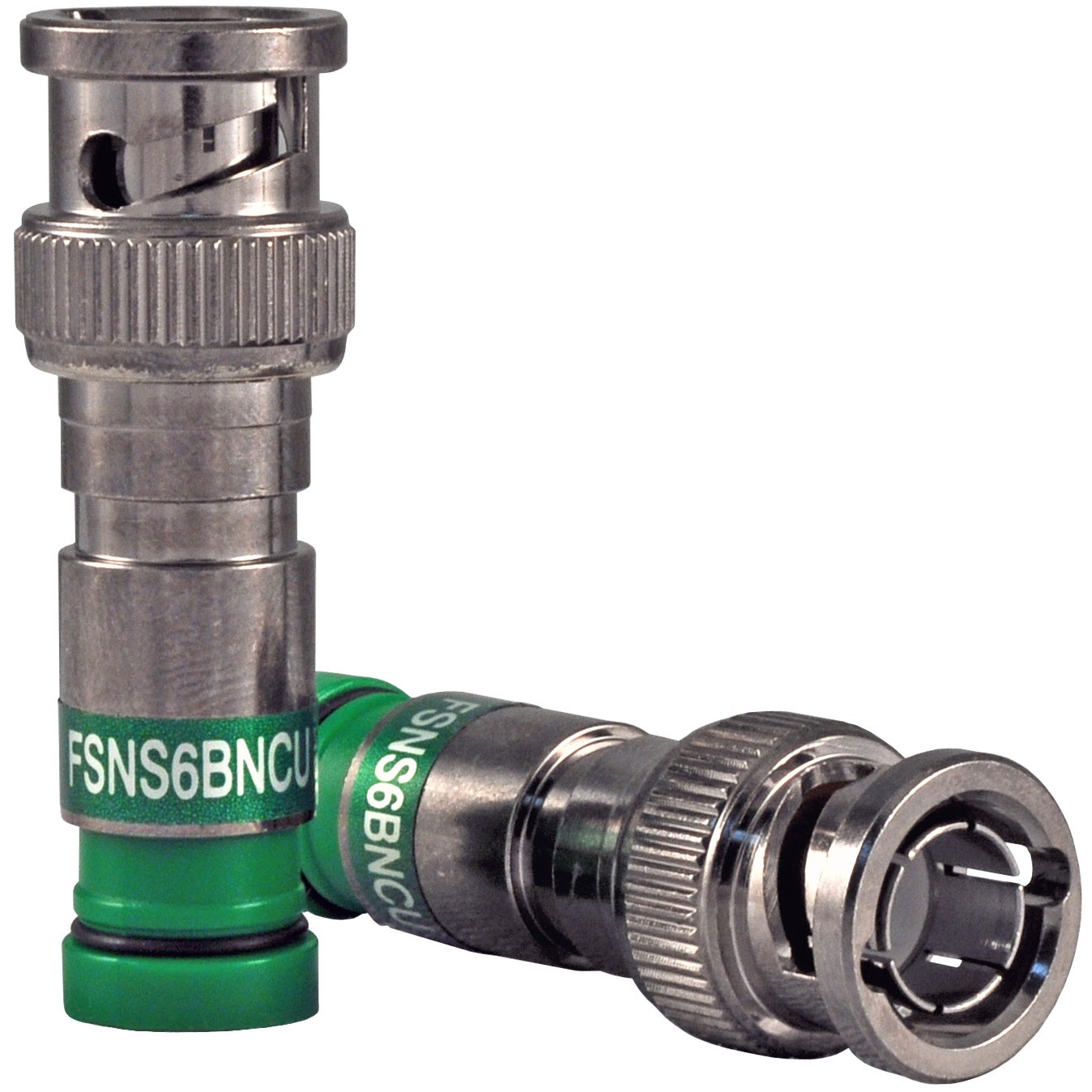

RG6 Universal BNC Connector for Standard or Quad-Shield Cable
75 ohms
The ProSNS™ Universal BNC connector has a patented 360° floating-pin basket incorporated into the design. By positioning the pin basket at the back end of the connector, the insertion of the cable center conductor is easier and more accurate. Once the pin basket is properly seated inside the connector, it is then compressed around the cable center conductor by an outer plastic sleeve.

Specifications

SKU FSNS6BNCU
Manufacturer Belden
Mfr. Part No FSNS6BNCU
Type Connectivity
Weight 0.0000
Connector Type Universal BNC for Standard or Quad Shield Cable
Connector Size (Cable Type) RG-6
Color Band Green
Required Tool CLCCT-SLM
